HiSpec Series Cameras
Fastec Imaging's HiSpec Series high-speed digital cameras have shown proven workhorse reliability for more than a decade. Truly an industry standard!
Standard HiSpec Series High-Speed Camera Features
- Popular ‘cube’ form factor
- Intuitive PC software with GiGE vision interface
- IMageBLITZ camera hardware image trigger
- Multi-Sequence recordings
- Phase-lock multi-camera synchronization
- CMOS sensor with global electronic shutter
Optional Features (HiSpec 2 and 5 High Speed Cameras)
- Up to 16GB memory
- Hi-G certified up to 100G
- IRIG-B Range timing standard

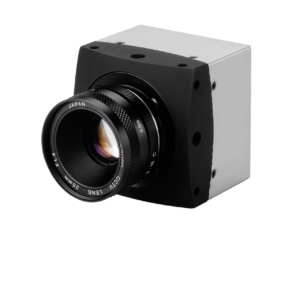

HiSpec 1 High-Speed Camera
- 1.3-megapixel 10-bit sensor
- Pixel rates over 650Mp/sec
- 1280 x 1024 @ 500+fps
HiSpec 2 High-Speed Camera
- 1.3-megapixel 10-bit sensor
- Pixel rates over 650Mp/sec
- 1280 x 1024 @ 500+fps
- Internal SD card for Image transfer
- Internal battery for 24hour image retention

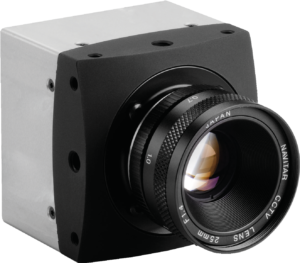

HiSpec 4 High-Speed Camera
- 2.9-megapixel 8-bit sensor
- Pixel rates over 1500Mp/sec
- 1696 x 1710 @ 500+fps
HiSpec 5 High-Speed Camera
- 2.9-megapixel 8-bit sensor
- Pixel rates over 1500Mp/sec
- 1696 x 1710 @ 500+fps
Features Our Customers Love
- Handheld and autonomous systems available
- Setup and control via multiple interfaces
- User-friendly intuitive control software
- “Cube” form factor ideal for many applications
- High-G options available
- Battery backup options available on some models
